truFIX – a complete fixation system
For primary anchorage of bone blocks and plates as well as membranes
The truFIX System, distributed by BioHorizons Camlog, offers you everything you need for the fixation of bone blocks and plates as well as the stabilization of membranes. This system incorporates all the necessary components to pick up and drive the truSCREW and truTACK. The truFIX system eliminates the need for multiple systems and unnecessary components, making it user-friendly for your practice.
The driver’s true-centered locking connection holds the truSCREW securely. The removal sleeve disengages the driver from the screw without compromising the screw or the stability of the graft.
- True centered patented locking connection
- True axial alignment with pickup each time
- truSCREW: self-drilling screw developed for easy insertion with maximum fixation
- truSCREW: patented Removal Sleeve for disengaging the screw from the driver without damaging screw head
- truTACK: hexagon driver head and barbed tip to pierce without drilling for simple tack insertion and easy screw-like removal
- Easy insertion and easy screw-like removal of the truTACK

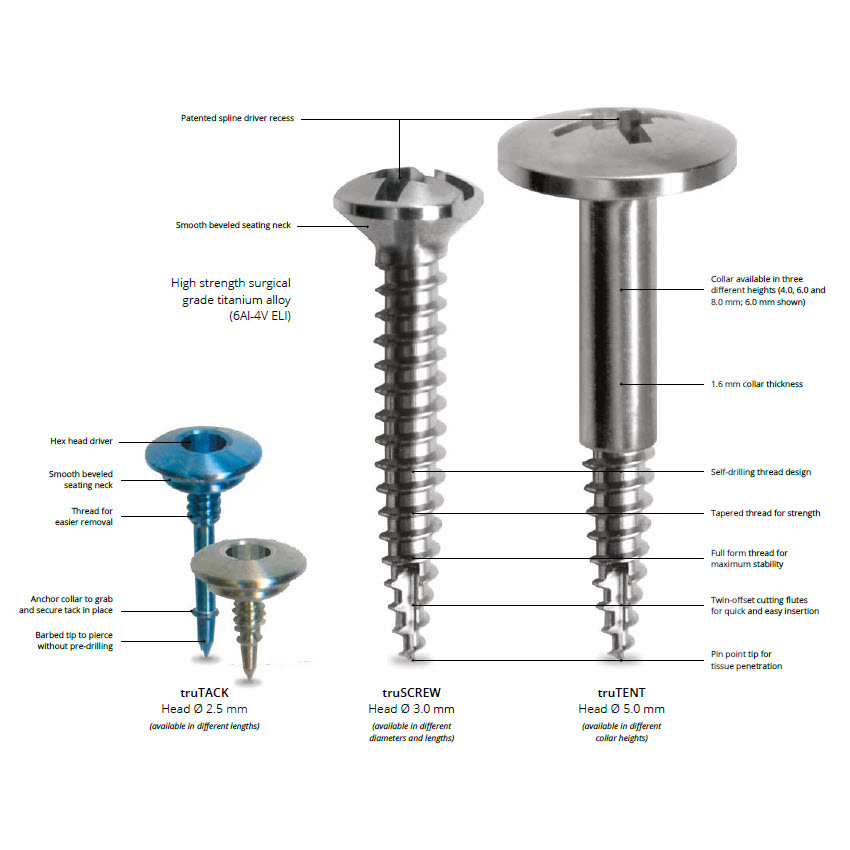

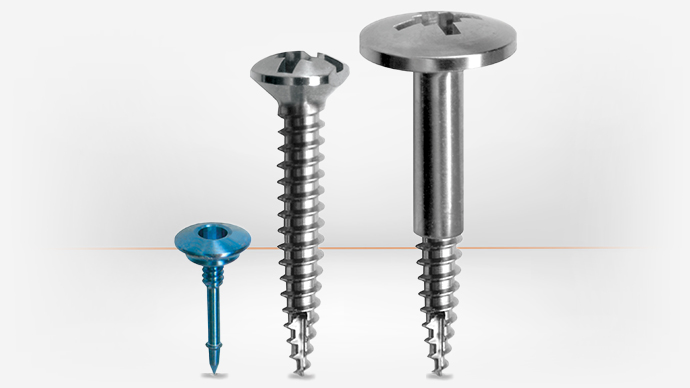

truTACK, truSCREW and truTENT
Bone Tacks, Self Drilling Bone Screws and Tenting Screws
The truTACK makes the stabilization of membranes quick and troublefree. Our unique tack incorporates a hexagon on its head and threads on its shaft, allowing for easy removal. The truTACK is placed like a tack and removed like a screw, a feature that you will not find in any other system.
The truSCREW, with its aggressive cutting flutes, is the ideal bone screw for the fixation of small bone within the oral and maxillofacial environment. These cutting flutes (in most instances) eliminate the need for any pre-drilling. The patented design of the screw ensures an effortless insertion into all types of bone.
The truTENT is a refinement of the truSCREW. Its raised collar and wider head is designed to support a membrane or titanium mesh during augmentation procedures.

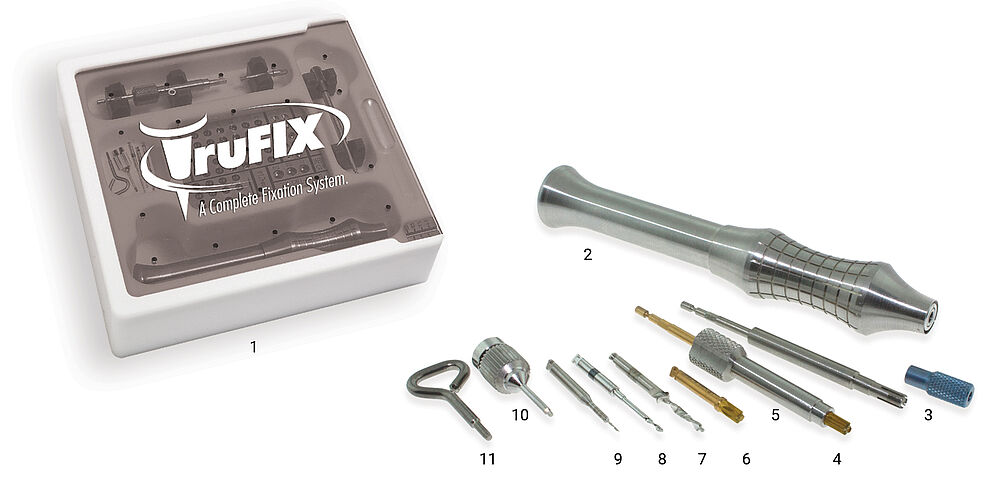

1 truFIX Tray (empty)
2 truFIX Driver Handle, 98 mm (3.875”) long
3 truTACK Driver Tip (includes blue Tip Cover)
4 truSCREW Driver Tip
5 truSCREW Driver Removal Sleeve
6 truSCREW Driver Tip, Contra-Angle
7 CA 2-Step Countersink Bur, 0.8 mm and 1.6 mm Steps
8 1.1 mm Pilot Twist Drill, 29.8 mm
9 Pilot Bur, 0.45 mm, 27 mm long, Contra Angle
10 External Hex Hand Driver, 0.88 mm
11 truSCREW Packaging Removal Tool
(also available separately)

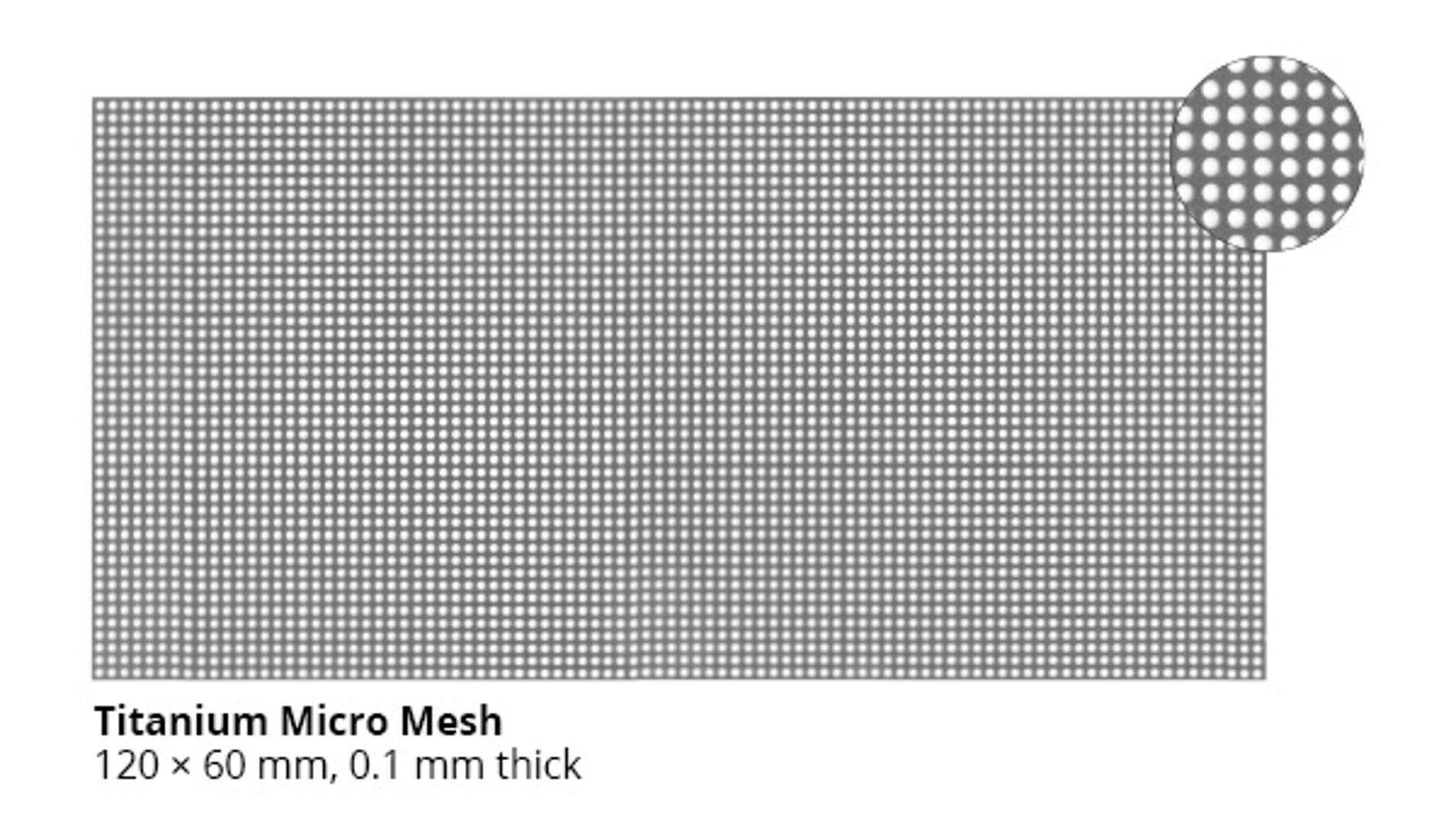

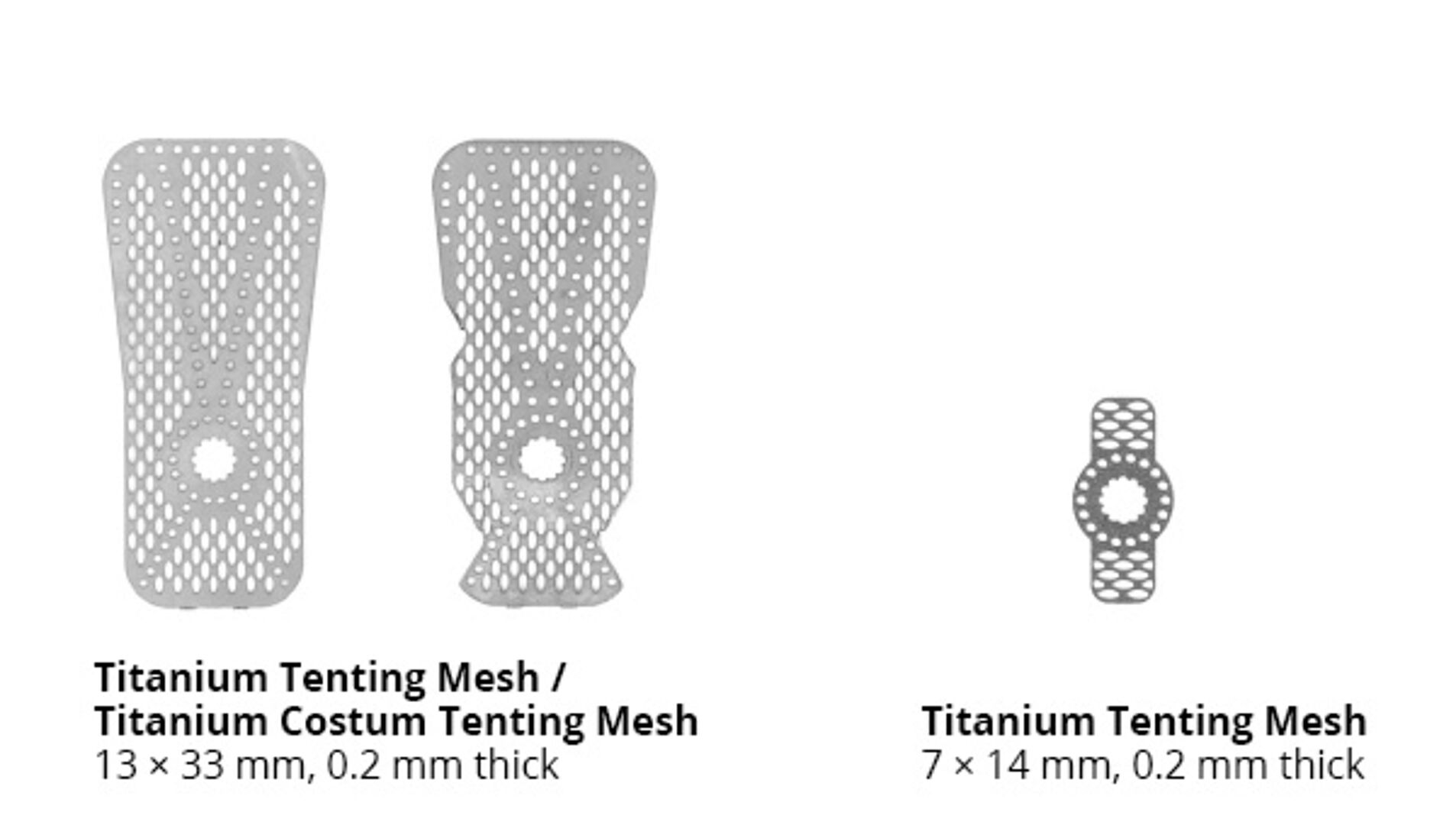

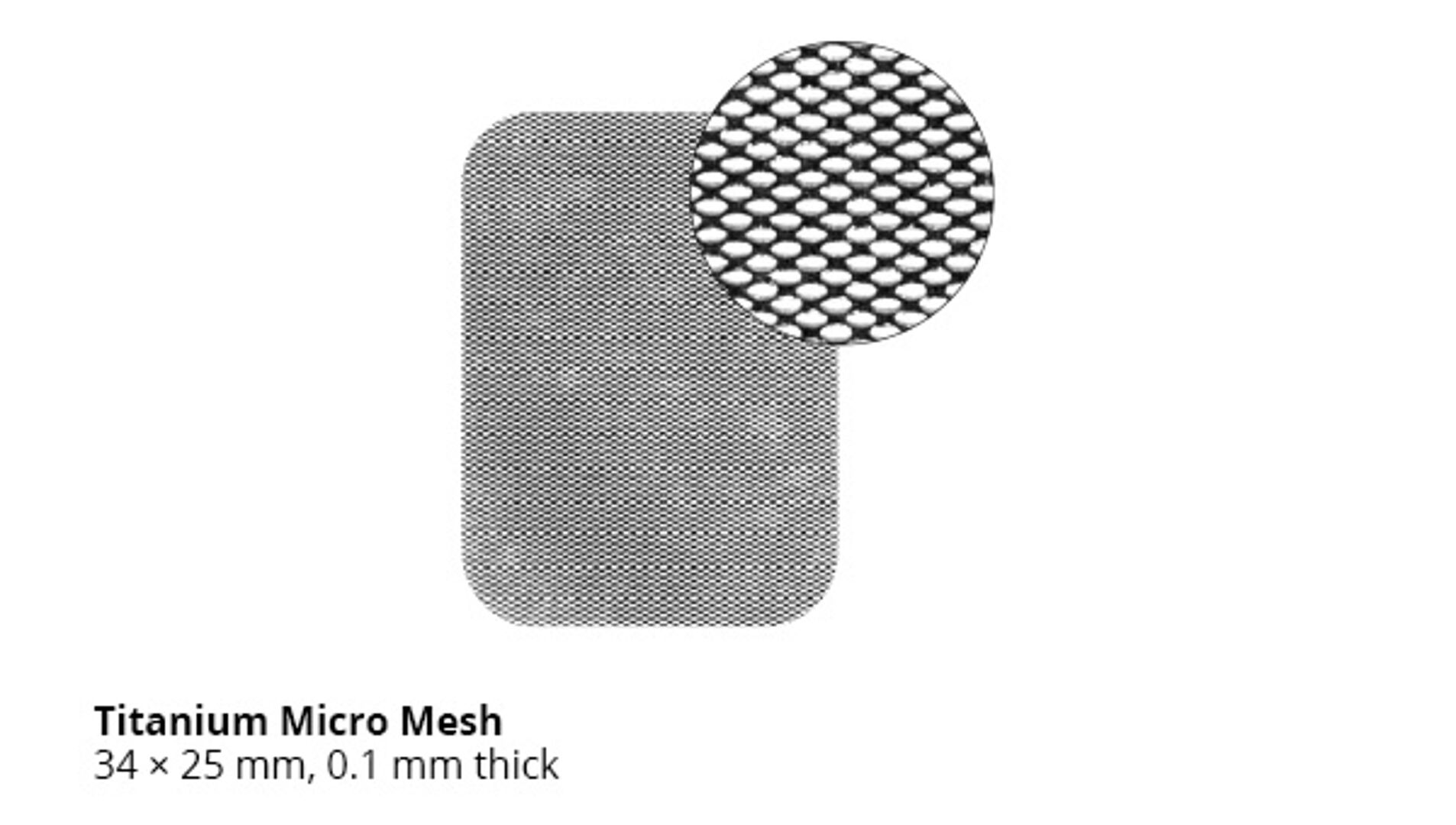

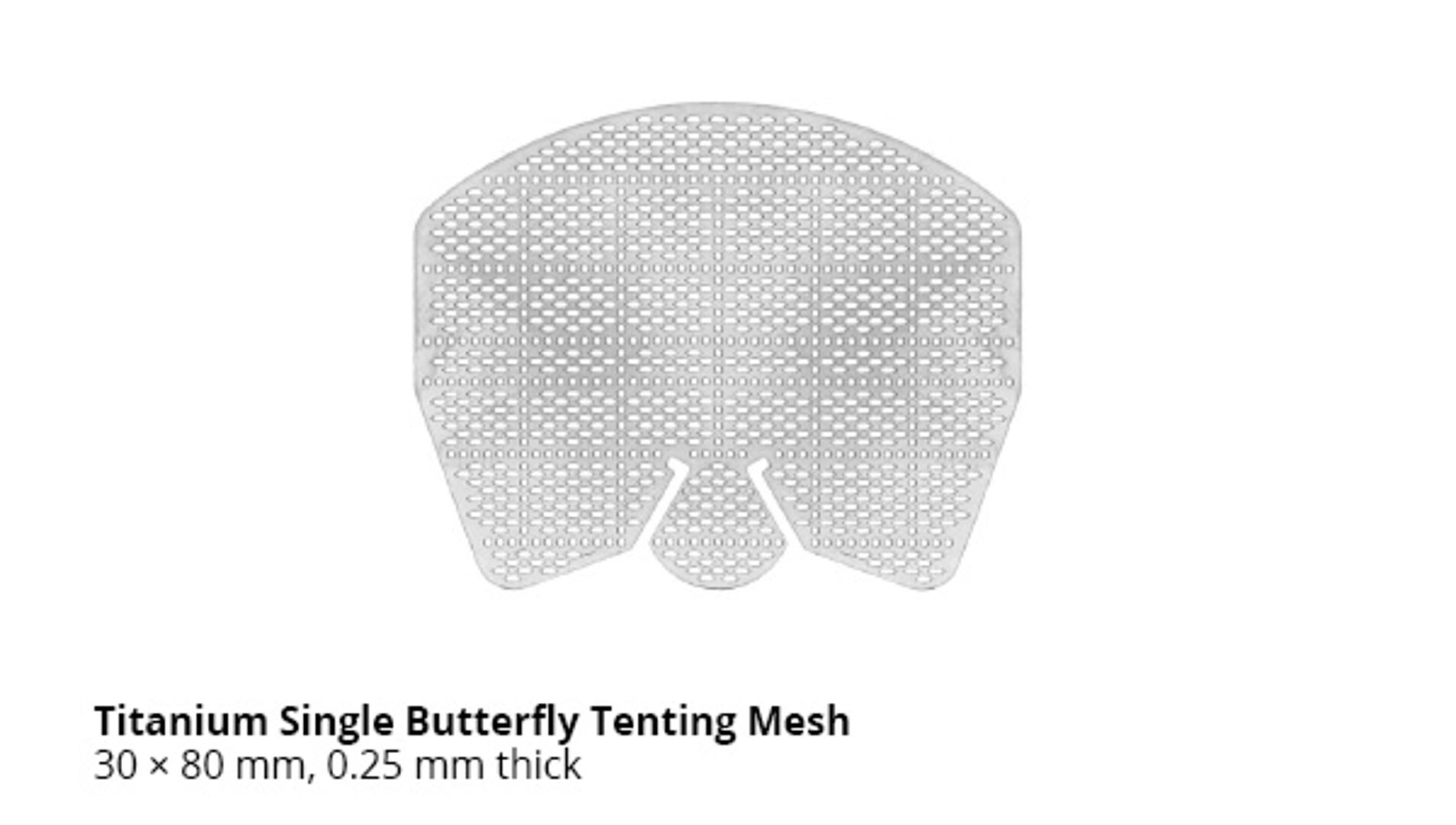

Titanium Meshes
Grade 1
For the reconstruction of extensive combined bony alveolar ridge defects, the use of titanium meshes is advantageous. They serve as a cage to preserve the space created for the augmentate for regeneration. The meshes are adapted intraoperatively to the defect, filled with augmentation material and fixed in positionally stable with screws. They have no barrier function. The titanium meshes are available in different sizes and structures as flat meshes. Depending on the indication, implantation can be performed on one or two sides.
