CAMLOG® Implant System

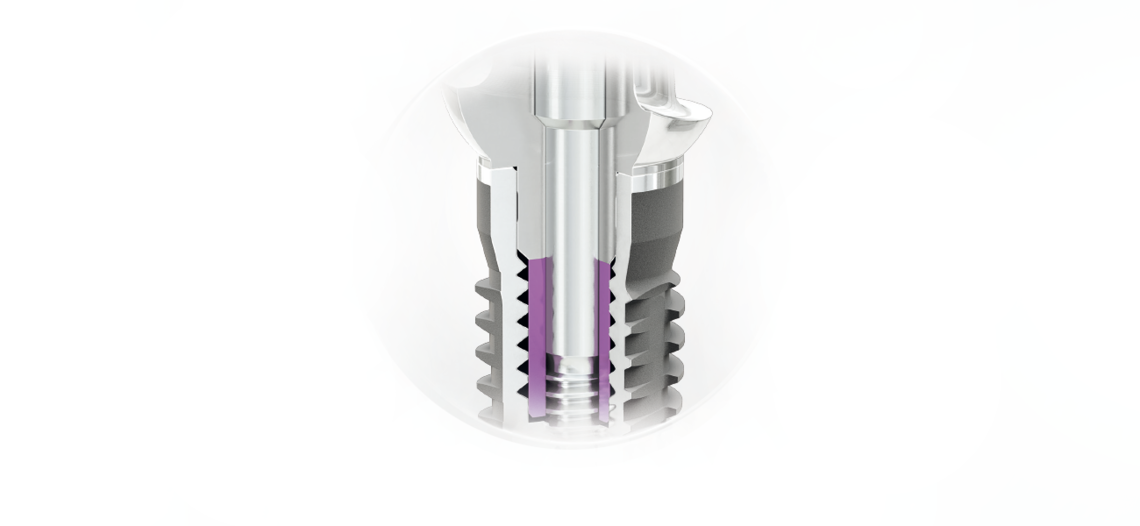

The Tube-in-Tube® Connection

The very core of the CAMLOG® Implant System is the Tube-in-Tube® Implant-abutment connection. Its precision and the special geometric groove and cam principle ensures virtually perfect force and torque distribution. The CAMLOG Implant System is designed for prosthetic simplicity - convincing both surgeons and prosthodontists. Both the CAMLOG SCREW-LINE and the CAMLOG PROGRESSIVE-LINE Implants use the proven Tube-in-Tube Implant-abutment connection.

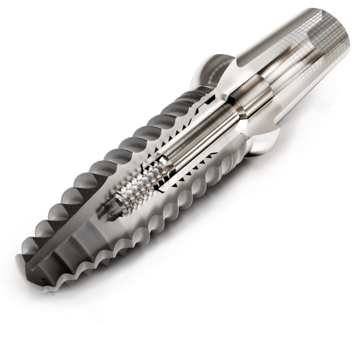

The proven CAMLOG Implant-abutment connection

The unmistakable Tube-in-Tube principle with the three interlocking grooves and cams creates a very precise, stable, and antirotational implant-abutment connection. This was designed biomechanically on the basis of complex finite element analyses. It has proven itself millions of times over for many years and its long-term success has been scientifically documented.

Benefits at a glance

  • Easy indexing thanks to three possible positions of the abutments
  • Precise with excellent tactile feedback
  • Platform Matching and optional Platform Switching
  • Defined vertical stop: no height offset over the entire workflow
  • Reduced diameter implant (3.3 mm)
  • Scientifically documented long-term results

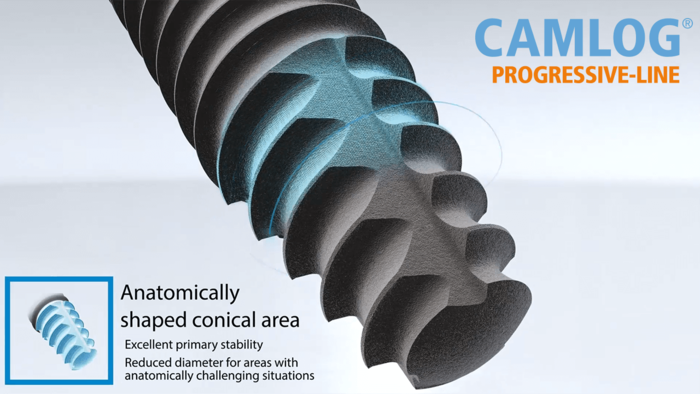

CAMLOG PROGRESSIVE-LINE



The CAMLOG PROGRESSIVE-LINE Implants make it easier to implement modern treatment concepts such as immediate restorations or immediate loading. The apical conical macro design of the CAMLOG PROGRESSIVE-LINE Implant, with extended flank height and many other features, facilitates achieving high primary stability – regardless of bone quality.

The crestal thread provides additional support in case of limited bone height while the thread running to the apex is ideal for immediate placement. CAMLOG PROGRESSIVE-LINE thus extends your therapeutic treatment options in soft bone and extraction sockets.

  • High-precision CAMLOG Tube-in-Tube connection
  • Apical-conical screw implant for confidence in all bone qualities1,2
  • High primary stability due to flexible drilling protocols for different bone qualities
  • Crestal thread for additional hold with limited bone height2
  • Thread down to the apex – ideal for immediate placement1,2


The CAMLOG PROGRESSIVE-LINE Implant is synonymous with prosthetic simplicity thanks to its Tube-in-Tube connection. Implant positioning is performed slightly supracrestal or epicrestal. CAMLOG PROGRESSIVE-LINE Implants are available with the Promote® plus surface and a machined neck of 0.4 mm.



[1] Conserva E. Initial stability after placement of a new buttress threaded implant. A case series study. implants. 2019(3):24-28.
[2] Ruppin J. One-year clinical experience with Progressive-Line implants. EDI journal. 2020(4):54-63.


CAMLOG SCREW-LINE

CAMLOG SCREW-LINE Implants are slightly conical, self-tapping screw implants. They enable easy insertion by self-centering with continuous bone contact, thus achieving solid primary stability. Rounding of the apical geometry enables gentle insertion of the CAMLOG SCREW-LINE Implants into the bone.

  • High-precision CAMLOG Tube-in-Tube connection
  • Slightly conical screw implant for all indications
  • Solid primary stability
  • Self-centering with continuous bone contact
  • Gentle insertion due to apical rounding



CAMLOG SCREW-LINE Implants are available with both the Promote® surface (1.4 mm machined implant neck) and the Promote® plus surface (0.4 mm machined implant neck).

Product catalog
The CAMLOG Implant System

BioHorizons and Camlog may market products only upon approval by the competent authorities.
Not all products and services may be available in every country.
